Samsung Flip Blackout Screen Issue: How to Restore the Main Display

Samsung Flip Blackout Screen Issue: How to Restore the Main Display

If your Samsung Flip main screen is black, unresponsive, or does not display anything after a screen repair, the issue may be resolved by restoring the display and completing the required calibration. This guide explains the full Samsung Flip blackout screen solution in four steps.

Keep the device connected to power during the entire process, then follow the button sequence below before downloading the Samsung Self-Repair Assistant installation file and completing calibration.

Step 1 – Connect the Device to Power

Connect the Samsung Flip to a power source and keep it connected throughout the entire procedure. This helps ensure that sufficient power is available while you restore the main screen and complete the calibration process.

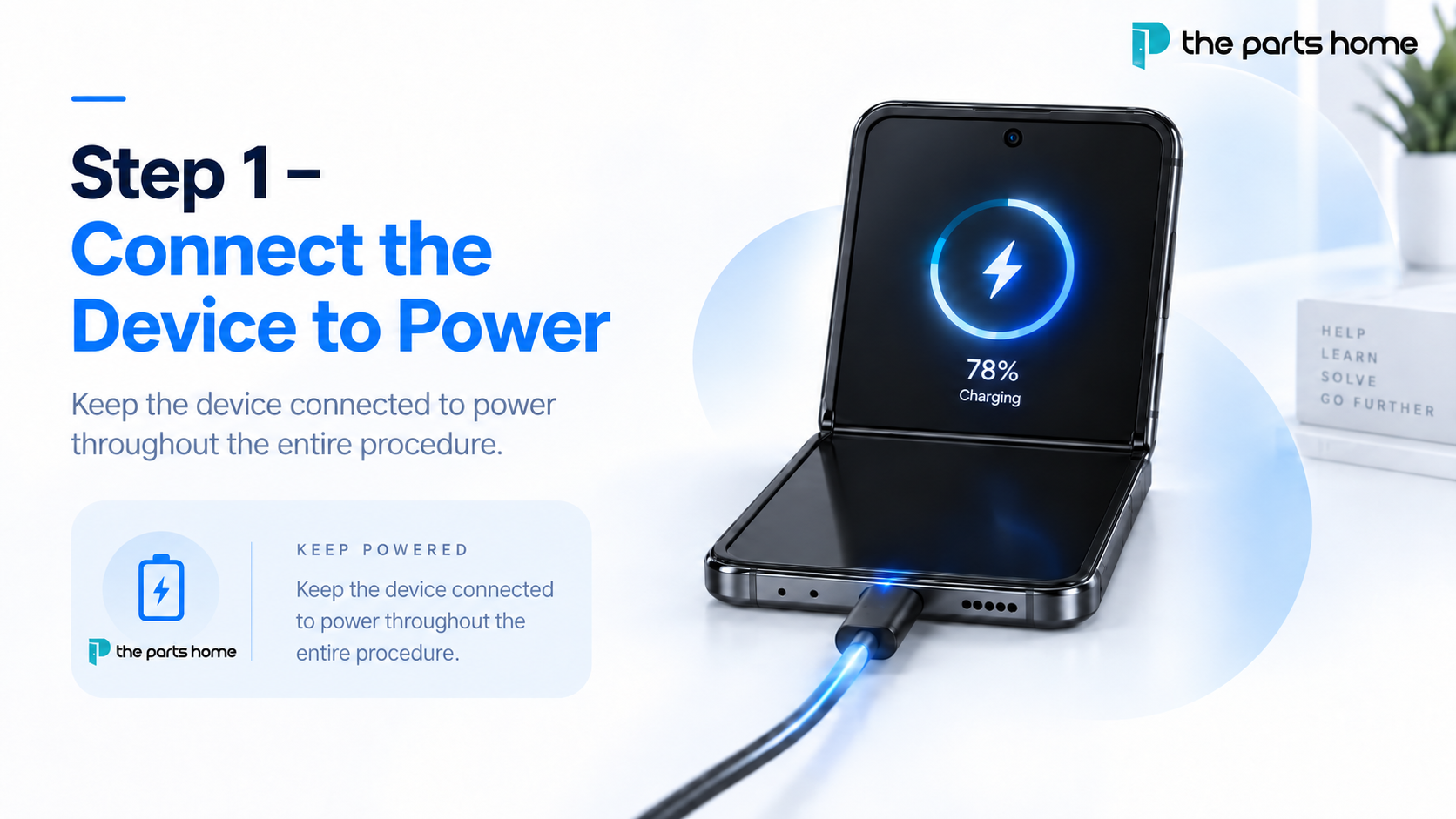

Samsung Flip connected to power before blackout screen troubleshooting

Step 2 – Restore the Main Screen Display

Open the device to access the main screen. If the Samsung Flip screen remains black or does not display anything, use the following button sequence:

  1. Press and hold the Power button.
  2. While continuing to hold the Power button, press Volume Up once.
  3. Then press Volume Down twice.
  4. The main screen display should now turn on.

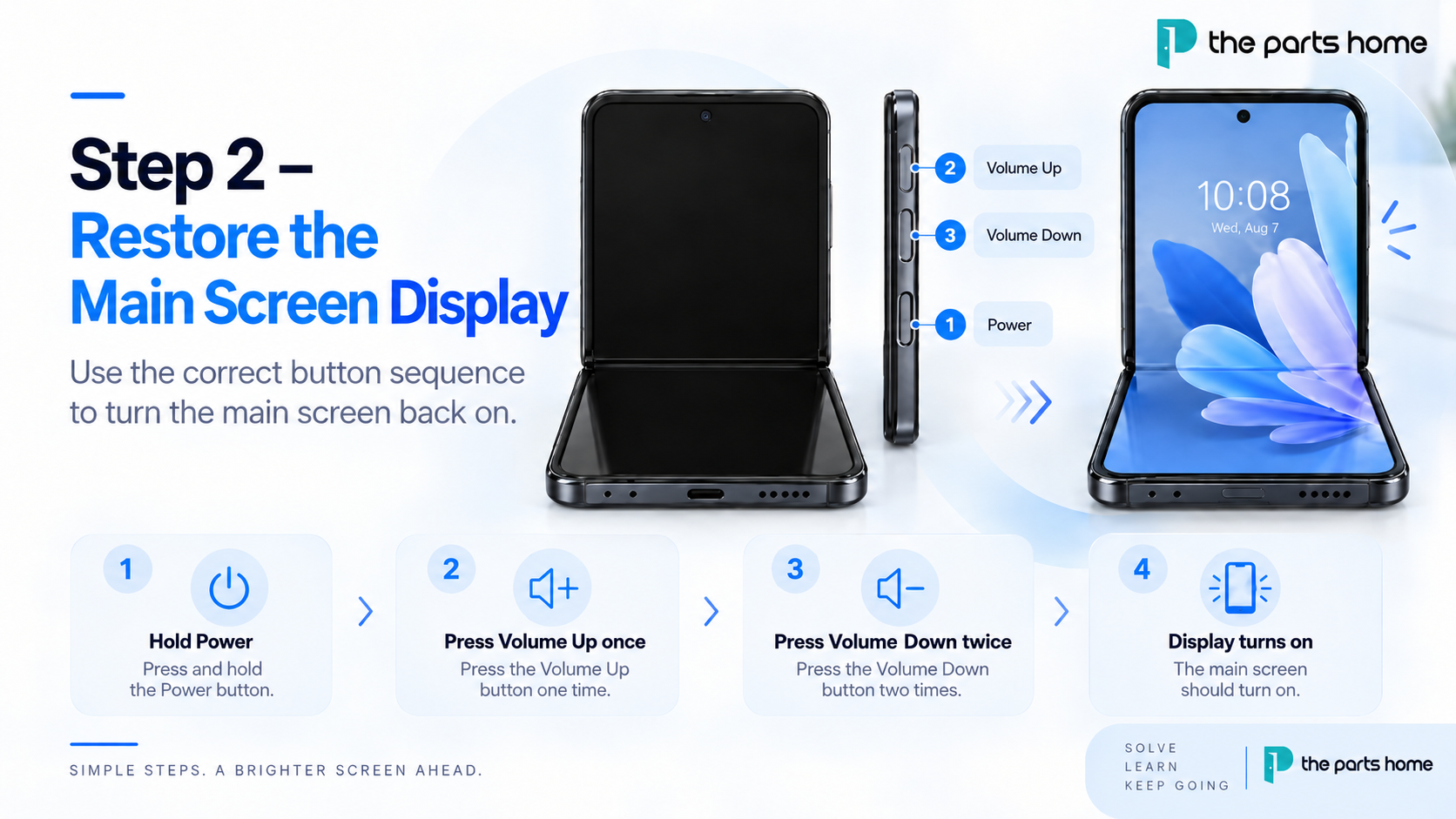

Samsung Flip button sequence to restore a black main screen

Step 3 – Download the Self-Repair Assistant File

Scan the QR code below to download the Self-Repair Assistant installation file. Once the download is complete, install the file on the device.

The QR code links to the supplied Self-Repair Assistant download file:

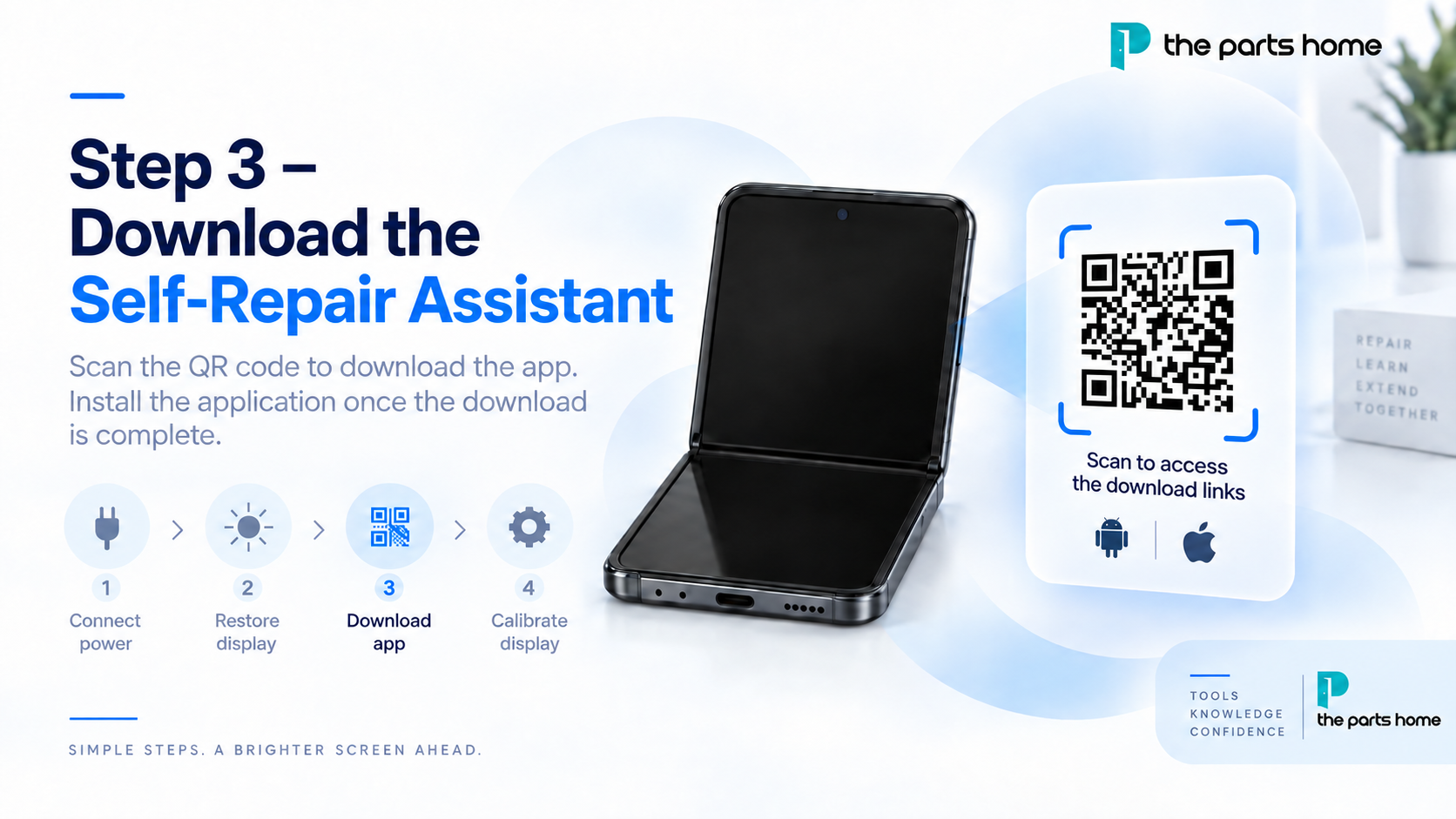

QR code to download the Samsung Self-Repair Assistant installation file

Step 4 – Complete the Screen Calibration

Open Self-Repair Assistant and follow the on-screen instructions to complete the required calibration process.

Once calibration is completed successfully, the Samsung Flip screen should be restored and the device should be ready for normal use.

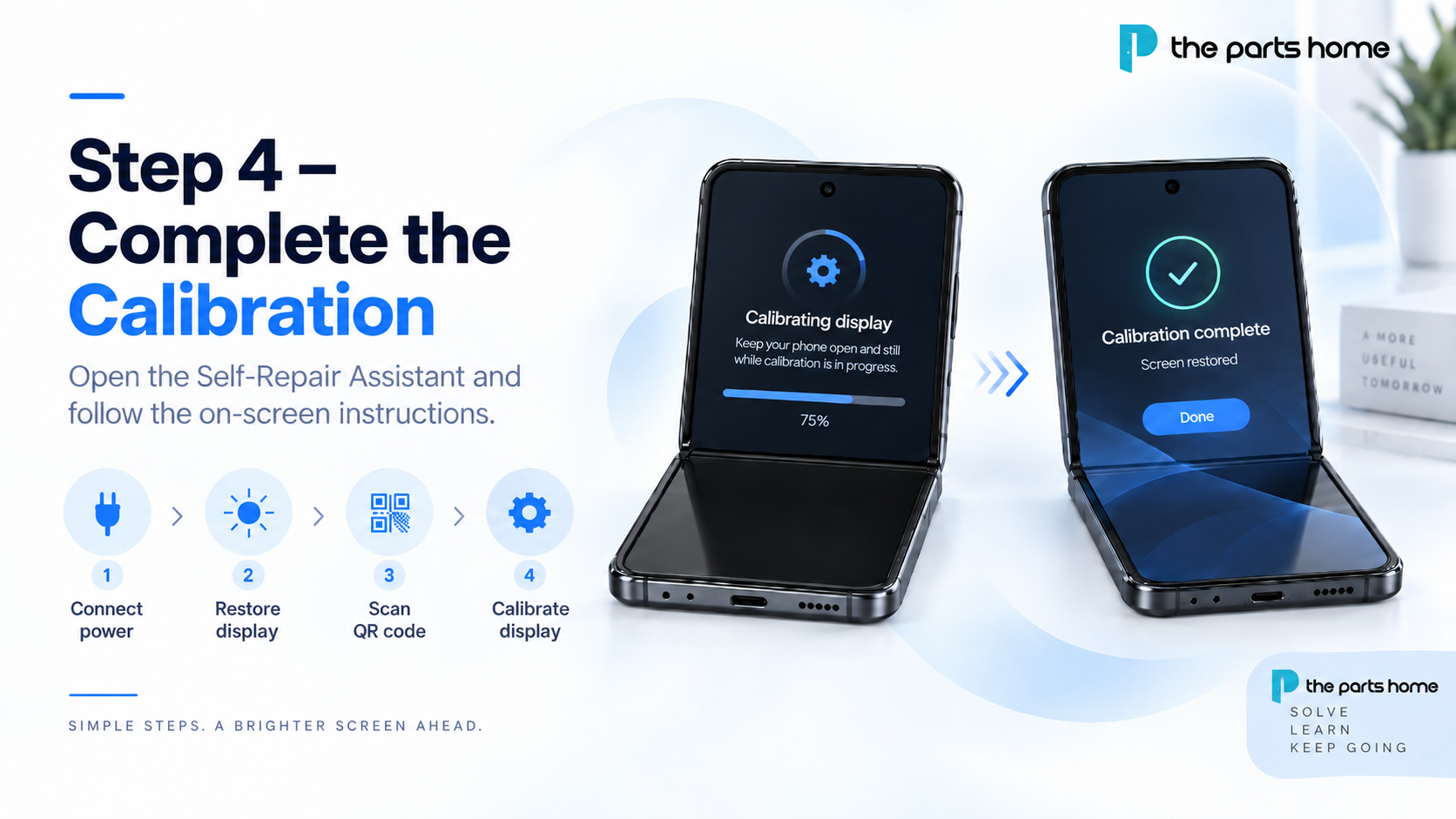

Samsung Flip Self-Repair Assistant screen calibration process

Samsung Flip Black Screen Troubleshooting Summary

For a Samsung Flip with a black or inactive main display, keep the device powered, use the Power and Volume button sequence to restore the screen, download the Self-Repair Assistant installation file, and complete the required calibration. Following the steps in order helps ensure the repaired display is correctly restored before the device returns to normal use.

Note: If the main screen still does not turn on after completing these steps, further diagnosis of the display assembly, connection, or repair may be required.
